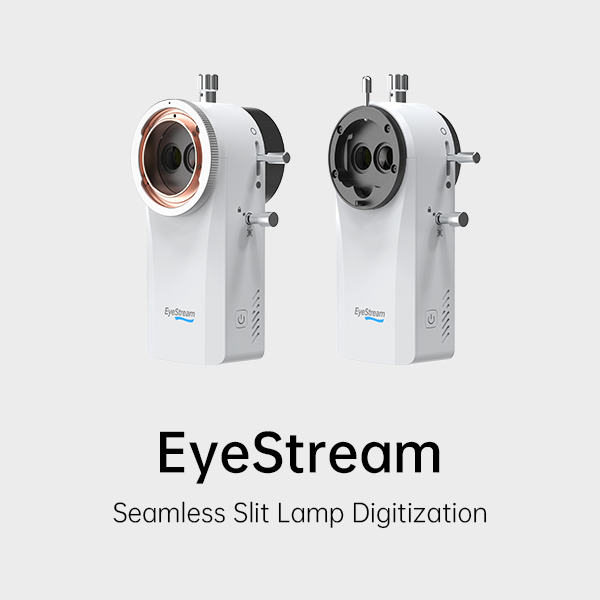

EyeStream Slit Lamp Camera Module

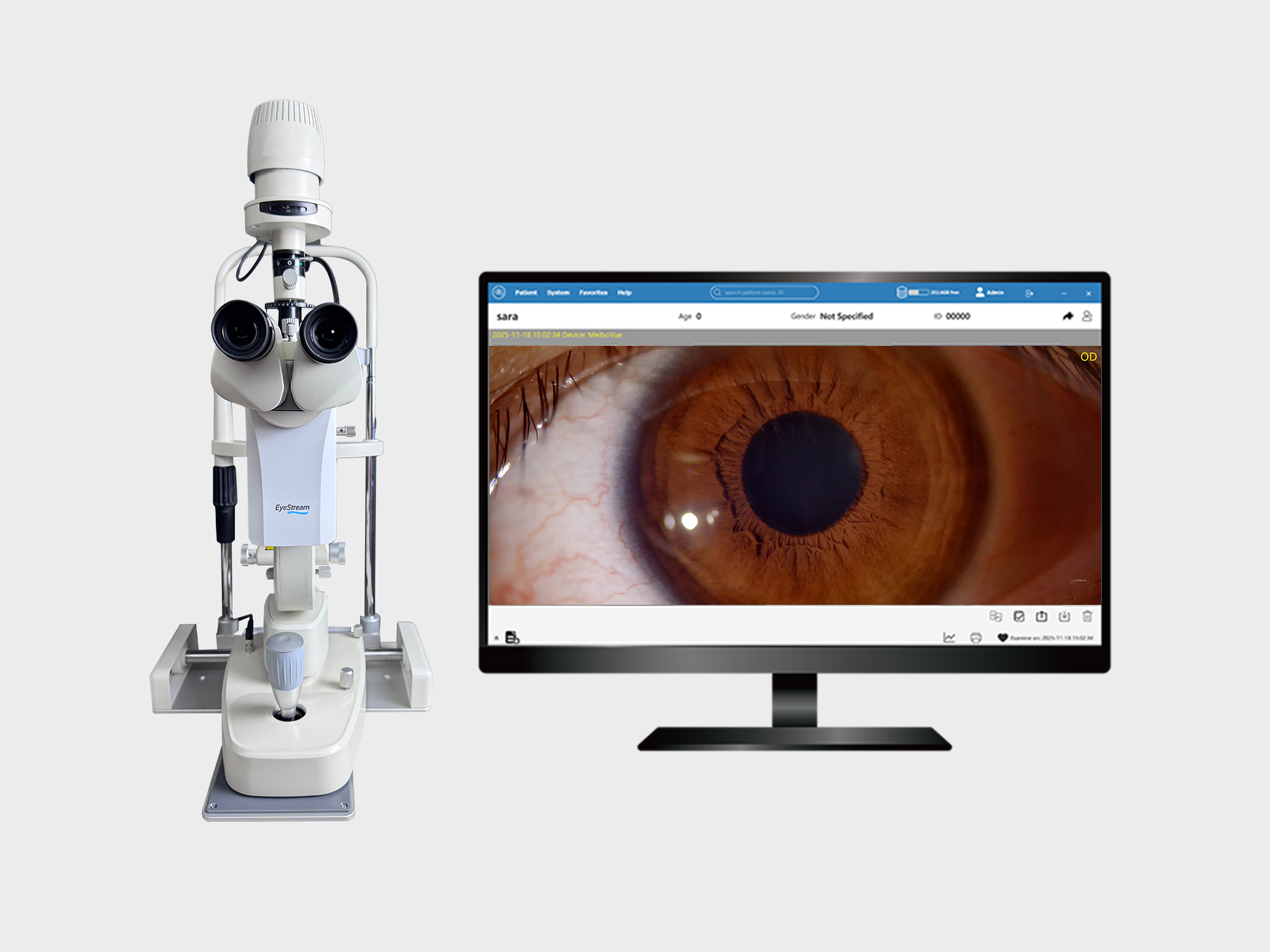

Upgrade Your Existing Slit Lamp to Digital Imaging EyeStream is a compact slit lamp camera module designed to seamlessly upgrade traditional slit lamps into powerful digital imaging systems. Compatible with Haag-Streit, Topcon, and most standard slit lamp models, EyeStream enables eye care professionals to capture high-quality images and videos without investing in a completely new digital slit lamp.

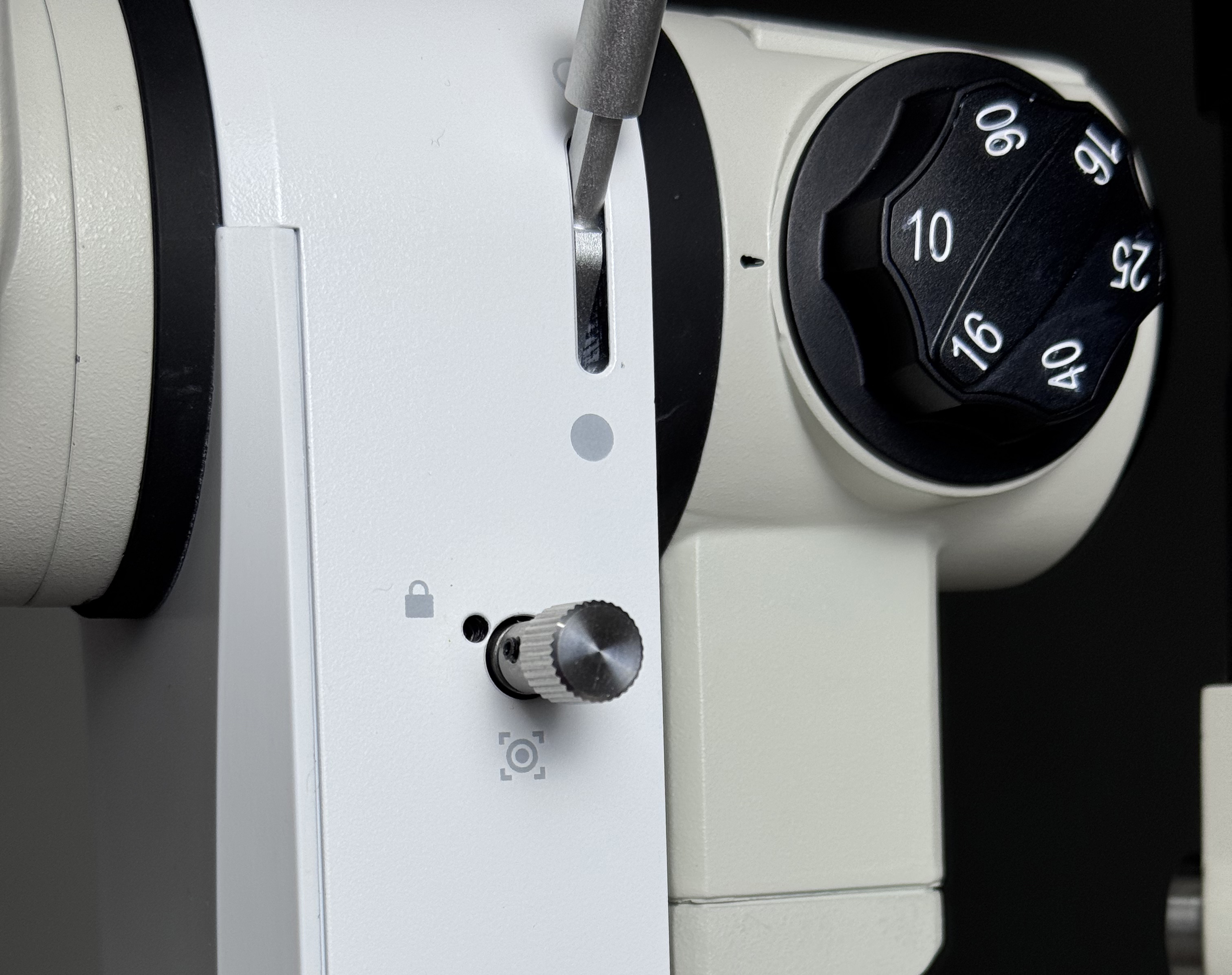

	Eyepiece-to-Screen Focus Matching EyeStream features a dedicated focus adjustment knob located on the side of the module. When installed on different slit lamps, clinicians can fine-tune the camera focus by simply rotating the knob. This ensures that the image displayed on the screen remains precisely aligned with the view through the eyepiece, enabling accurate, real-time visualization and reliable image capture.
High-Resolution Image & Video Capture EyeStream offers two dedicated imaging modes for color photo and video acquisition: diffuse illumination mode and slit illumination mode. These optimized modes enable clinicians to capture clear, high-quality images under both wide-field diffused lighting and focused slit beam conditions, ensuring comprehensive visualization of anterior segment structures.

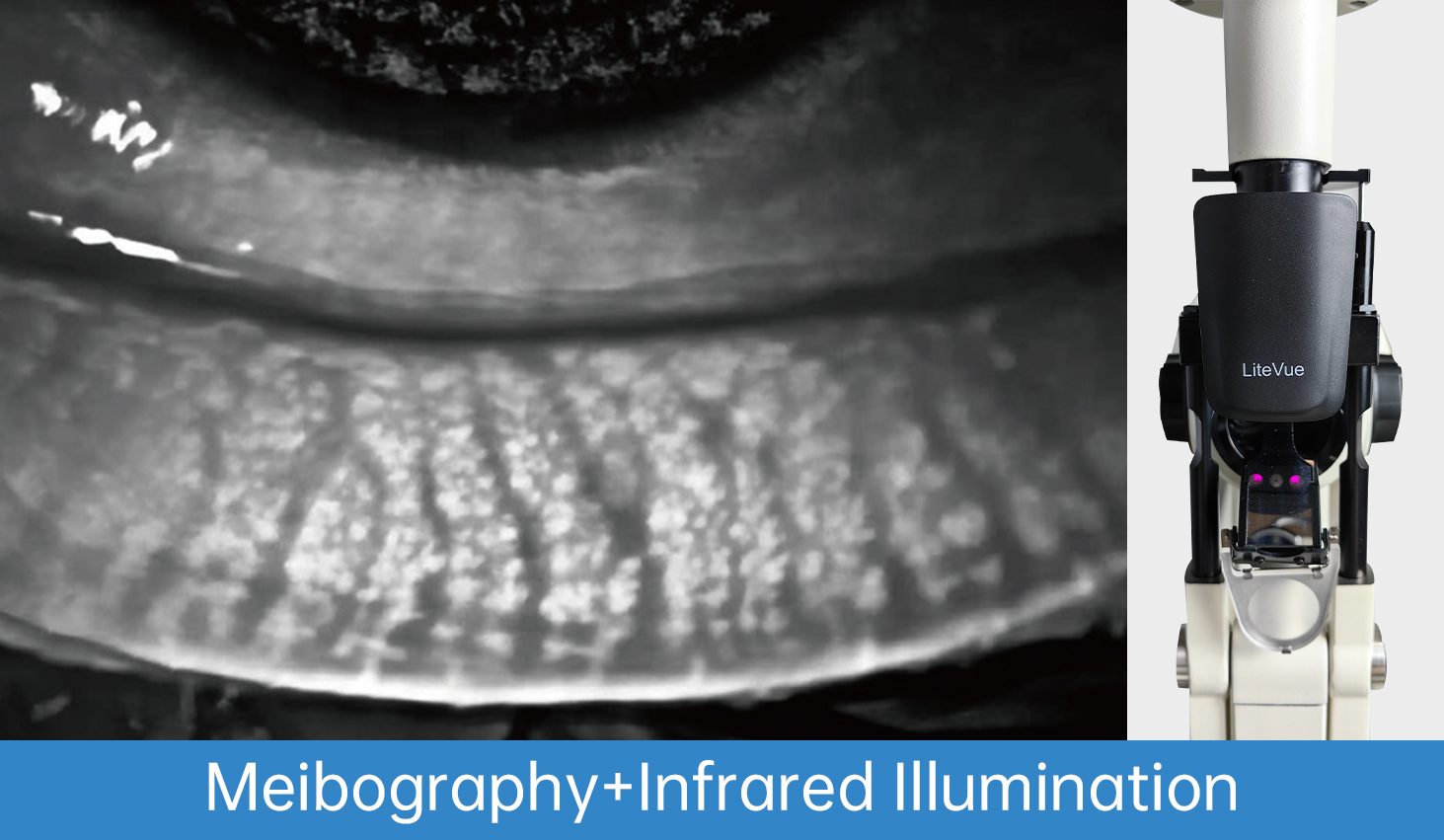

	High-Quality Meibomian Gland Imaging EyeStream includes a dedicated meibography mode combined with an infrared background illumination module to capture high-resolution images and videos of the meibomian glands. This enables clinicians to clearly visualize gland structure and morphology, supporting accurate evaluation in dry eye diagnosis and management.

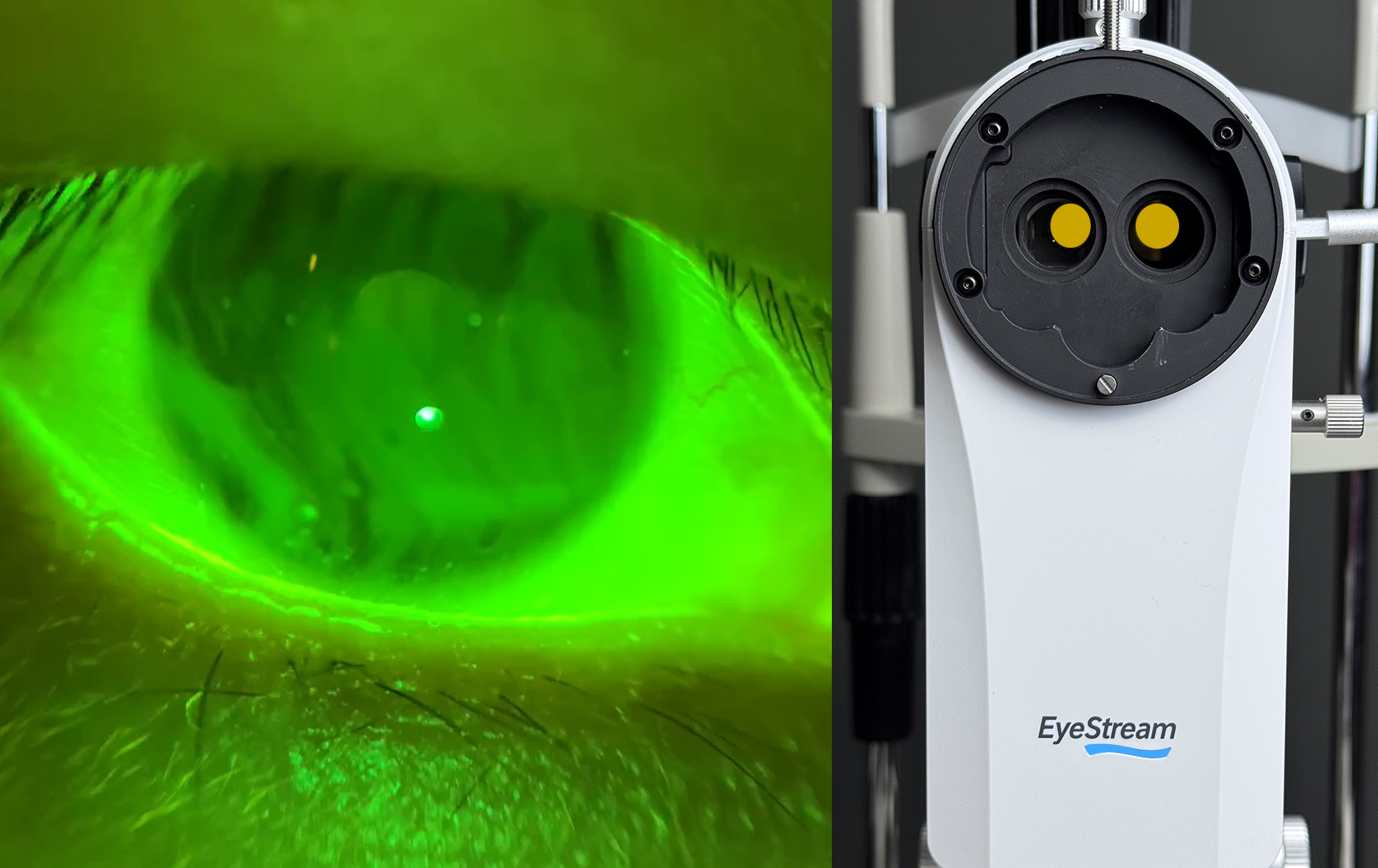

Built-in Yellow Filter for Enhanced Fluorescein Visualization EyeStream features an integrated yellow filter that enhances the visibility of fluorescein staining. By improving contrast and reducing background glare, it enables clinicians to clearly observe corneal staining patterns, evaluate contact lens fitting, and assess tear film breakup time with greater accuracy.

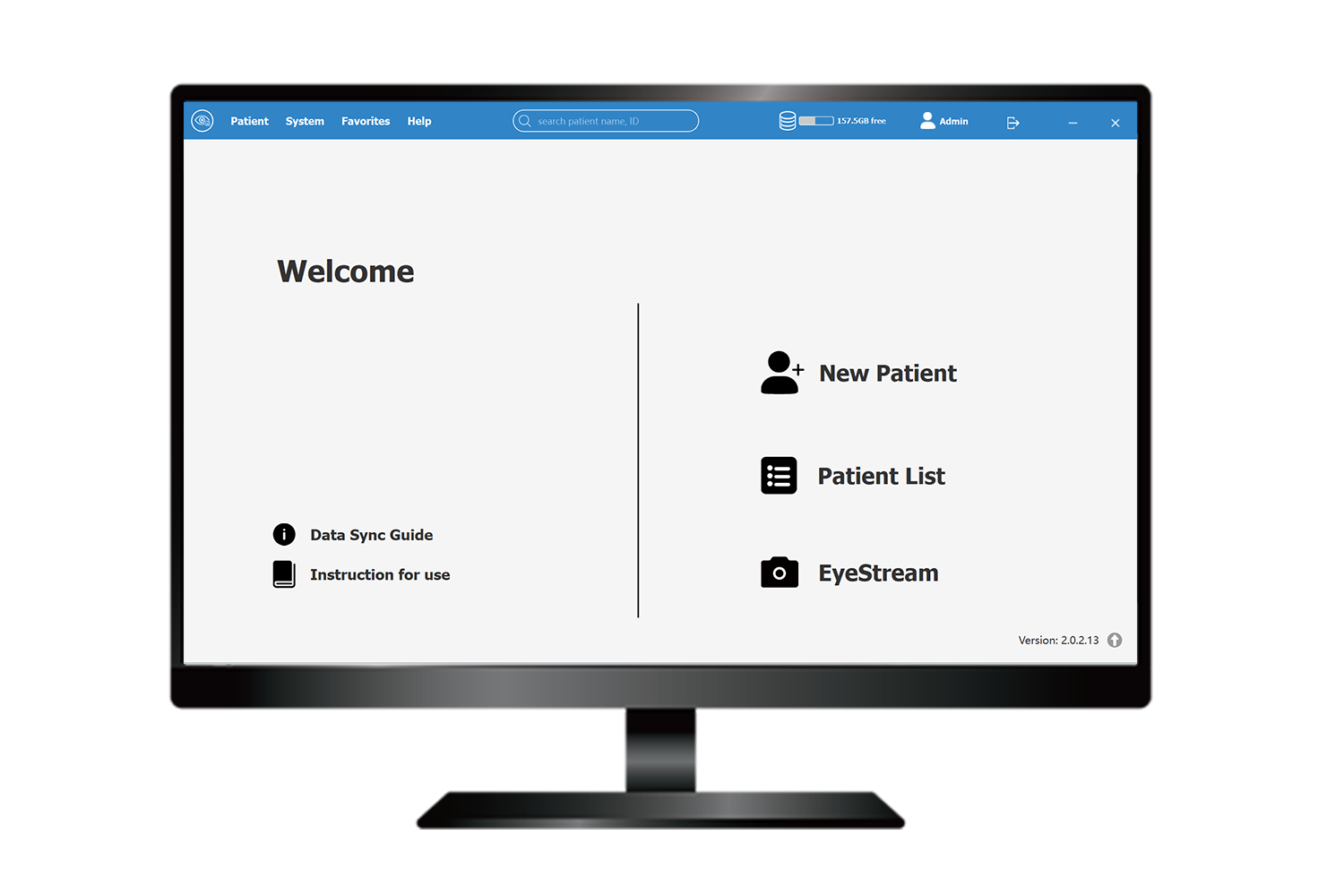

	VisuDoc Assist for Systematic Patient Image Management Images and videos captured by EyeStream are automatically stored and organized within the VisuDoc software. This enables clinicians to efficiently track disease progression over time and enhance patient education through clear visual documentation and comparison.

Specification

Sensor	8M megapixels	Filter	Yellow filter built-in
Preview Resolution	2560 x 1440, 30fPs	Parfocal Adjustment	Supported
Image Resolution	3840 x 2160	Data transfer	USB cable
Image Format	JPEG	Power	DC 5V 2A
Video Resolution	2560 x 1440, 30fPs	Product Dimension	189mm x 100mm x 89mm (H/W/T)
Video Format	MP4	Product Weight	950g
Video Output	HDMI/USB

Packing List
No.	Part Name	Quantity
1	Eye Imaging Camera	1pc
2	VBL-100 Lighting Module	1pc
3	Foot Pedal (option)	1pc
4	VEE-100 Eyelid Everter	1pc
5	Hook and Loop Cable Tie	4pcs
6	USB Microphone	1pc
7	Type-C USB Recharging Cable (for VBL-100)	1pc
8	Data Cable	1pc
9	Power Adaptor	1pc
10	Software USB Disc	1pc
11	Instruction for Use	1pc
